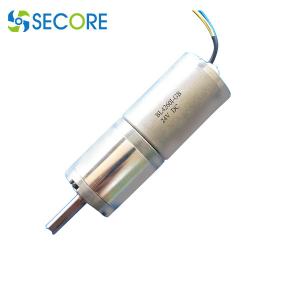

5-24V 24mm brushless dc planetary gear motor applied in cordless drill
Main features:
-Size: φ42.0* 60.0mm-28.0*80mm
-Built-in driver
-PWM pulse wide speed range
-Clockwise/counter-clockwise rotation
-FG speed feedback signal
-Low EMC / EMI / noise
-Long life: 20000hrs Min.
-Precision and low noise brushless motor with gearbox.
-All series products are with low electromagnetic interference, high efficiency, low noise.
-Design competence for controller board of brushless motor
-Provide OEM&ODM services with a full range of BLDC motor platform
-Consistency assurance of product quality
-Regarding brushless motor, the endurance won't be limited by the carbon brush.
Some More models for further reference:
| Model # | BLS2418I | BLS2419I | BLS2430I | BLS2838I | BLS3640I | BLS2413O | BLS4220O |
| Type | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | outer BLDC Motor | outer BLDC Motor |
| Size (mm) | Φ24.4*H18.1 | Φ24.4*H19.0 | Φ24.4*H30.8 | Φ28.0*H37.6 | Φ36.0*H40.0 | Φ24.0*H13.0 | Φ40.5*H21.0 |
| Voltage (V) | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 100~240VDC |
| RPM | 3000~10,000 | 3000~12,000 | 2000~12,000 | 3000~15,000 | 3000~10,000 | 3000~25,000 | 6000~25,000 |
| Power (W) | 3~5W | 5W | 6~10W | 10~15W | 20~30W | 15~25W | 130W |
| Weight(g) | 30g | 35g | 50g | 75g | 150g | 50g | 130g |
Typical
application | electric razor,
electric hair trimmer, hair curler |
electric hair trimmer, hair curler | electric razor,
electric hair trimmer | electric razor,
electric hair trimmer | pet electric hair trimmer | household hair dryer | hair dryer |
TO BE TAILORED
1. Additional voltage types
2. Configurable shaft length and second shaft end
3. Modified shaft dimensions and pinion configurations such as flats, gears, pulleys and eccenter
4. Extended temperature range
5. Customization for high speed and or high load applications
6. Customization for motors with increased electrical or mechanical tolerance requirement
Some of our customers
Typical Application:
-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer
- Power tool and fitness equipment
• Electric screwdriver, Electric hydraulic pliers, Electric scissors,
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler
• Blender, sweeper, window cleaner, small household appliances
